What is AGP?

Category: Computing Tags:

AGP is short for Accelerated Graphics Port. It was designed in 1997 as a successor to PCI-type connections. AGP is a high-speed point-to-point channel for attaching a video card to a computer’s motherboard, primarily to assist in the acceleration of 3D graphics.

AGP is commonly used for games that require the image displayed on the monitor is calculated from a data stream, rather than simply passed through the computer like a television signal.

The AGP channel is 32-bit wide and runs at 66 MHz This translates into a total bandwidth of 266 MBps, which is much greater than the PCI bandwidth of up to 133 MBps. AGP also supports two optional faster modes, with a throughput of 533 MBps and 1.07 GBps.

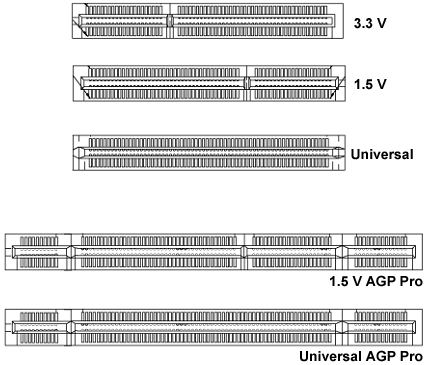

The AGP bus has three types of slots: one called Universal which allows both 1.5V and 3.3V boards to be installed; another one that only allows 3.3V boards to be installed; and another one that should only be used by 1.5V video cards.

In 1998, AGP Pro was created. AGP Pro defined a larger slot, with more voltage pins, for high-consumption 3D video cards. In 2004, AGP was replaced by PCI Express. PCI-Express is the fastest and supports high-end resolutions for gaming systems.
